Estimating Mutual Information with scConcept

This tutorial demonstrates how to estimate mutual information between a gene panel and the full transcriptome using scConcept.

import os
from pathlib import Path

import numpy as np
import scanpy as sc

from concept import scConcept

The directory where the pre-trained model and example dataset will be stored:

cache_dir = Path("./cache/")
os.makedirs(cache_dir, exist_ok=True)

Download the same sample dataset used in the embedding extraction tutorial:

filename = cache_dir / "multiome_gex_processed_training.h5ad"
url = "https://openproblems-bio.s3.amazonaws.com/public/explore/multiome/multiome_gex_processed_training.h5ad"

if not os.path.exists(filename):
    import urllib.request

    print(f"Downloading {filename} ...")
    urllib.request.urlretrieve(url, filename)
else:
    print(f"{filename} already exists, skipping download.")

adata = sc.read(filename)
print(adata)

cache/multiome_gex_processed_training.h5ad already exists, skipping download.
AnnData object with n_obs × n_vars = 42492 × 13431
    obs: 'pct_counts_mt', 'n_counts', 'n_genes', 'size_factors', 'phase', 'cell_type', 'pseudotime_order_GEX', 'batch', 'pseudotime_order_ATAC', 'is_train'
    var: 'gene_ids', 'feature_types', 'genome'
    uns: 'dataset_id', 'organism'
    obsm: 'X_pca', 'X_umap'
    layers: 'counts'

Load a pre-trained scConcept model:

concept = scConcept(cache_dir=cache_dir)
concept.load_config_and_model(model_name="corpus40M-model30M")

Subsample cells for a faster example, then define a panel. Here we use the first 200 genes from adata.var['gene_ids'] only as a simple example. In practice, replace panel_gene_ids with the gene IDs from your panel.

estimate_size = min(2048, adata.n_obs)
rng = np.random.default_rng(seed=42)
random_indices = rng.choice(adata.n_obs, estimate_size, replace=False)
adata_subset = adata[random_indices].copy()

panel_gene_ids = adata_subset.var["gene_ids"].astype(str).to_numpy()[:200]
panel_mask = adata_subset.var["gene_ids"].astype(str).isin(panel_gene_ids).to_numpy()
adata_panel = adata_subset[:, panel_mask].copy()

print(f"Cells used: {adata_subset.n_obs}")
print(f"Full transcriptome genes: {adata_subset.n_vars}")
print(f"Panel genes used: {adata_panel.n_vars}")

Cells used: 2048
Full transcriptome genes: 13431
Panel genes used: 200

Extract embeddings for the full transcriptome and for the panel, then estimate mutual information between them:

embedding_kwargs = {
    "batch_size": 64,
    "gene_id_column": "gene_ids",
    "return_type": "torch",
}

cell_embs_full = concept.extract_embeddings(adata_subset, **embedding_kwargs)["cls_cell_emb"]
cell_embs_panel = concept.extract_embeddings(adata_panel, **embedding_kwargs)["cls_cell_emb"]

mutual_info = concept.estimate_mutual_information(cell_embs_full, cell_embs_panel)
print(f"Estimated mutual information: {mutual_info:.4f}")

Estimated mutual information: 0.7974

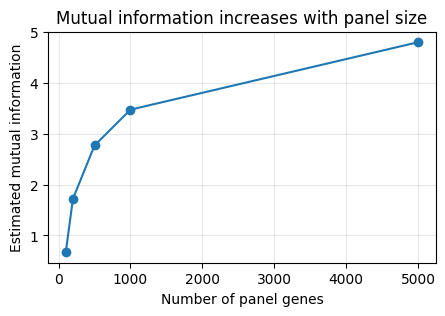

Larger Panels Increase Mutual Information

This simple example uses nested panels of increasing size and compares each one to the same full-transcriptome embedding.

import matplotlib.pyplot as plt

mean_expression = np.asarray(adata_subset.X.mean(axis=0)).ravel()
gene_order = adata_subset.var.iloc[np.argsort(mean_expression)[::-1]]["gene_ids"].astype(str).to_numpy()
panel_sizes = [100, 200, 500, 1000, 5000]
panel_sizes = [size for size in panel_sizes if size <= len(gene_order)]

mutual_infos = []
for panel_size in panel_sizes:
    panel_gene_ids = gene_order[:panel_size]
    panel_mask = adata_subset.var["gene_ids"].astype(str).isin(panel_gene_ids).to_numpy()
    adata_panel = adata_subset[:, panel_mask].copy()
    cell_embs_panel = concept.extract_embeddings(adata_panel, **embedding_kwargs)["cls_cell_emb"]
    mutual_info = concept.estimate_mutual_information(cell_embs_full, cell_embs_panel)
    mutual_infos.append(mutual_info)

plt.figure(figsize=(5, 3))
plt.plot(panel_sizes, mutual_infos, marker="o")
plt.xlabel("Number of panel genes")
plt.ylabel("Estimated mutual information")
plt.title("Mutual information increases with panel size")
plt.grid(True, alpha=0.3)
plt.show()
